CSIR NET July 2026 Physical Science — Full Question Paper with Answers & Solutions

The complete CSIR NET July 2026 Physics (Physical Science) paper — 75 questions with options, official answer key and step-by-step solutions by PhysicsByAaryan. Search any question, filter subject-wise and topic-wise, and click the arrow under a question to reveal its answer and full solution.

Q1

General Aptitude · Logic Reasoning

Three alarm bells ring at intervals $30 \mathrm{sec}, 40 \mathrm{sec}$ and 45 sec respectively. They started ringing simultaneously at 4:00 am in the morning. At what time will they all ring simultaneously:

1. (A)4:06 am
2. (B)4:06 am
3. (C)4:40 am
4. (D)5:00 am

▶Show answer & solution

Q2

General Aptitude · Logic Reasoning

In a certain code if ' 1000 ' is written as ' 1728 ' and ' 125 ' is written as ' 343 '. And ' 343 ' is written as ' 729 ', in the same code ' 512 ' will be written as:

1. (A)1000
2. (B)1331
3. (C)990
4. (D)1010

▶Show answer & solution

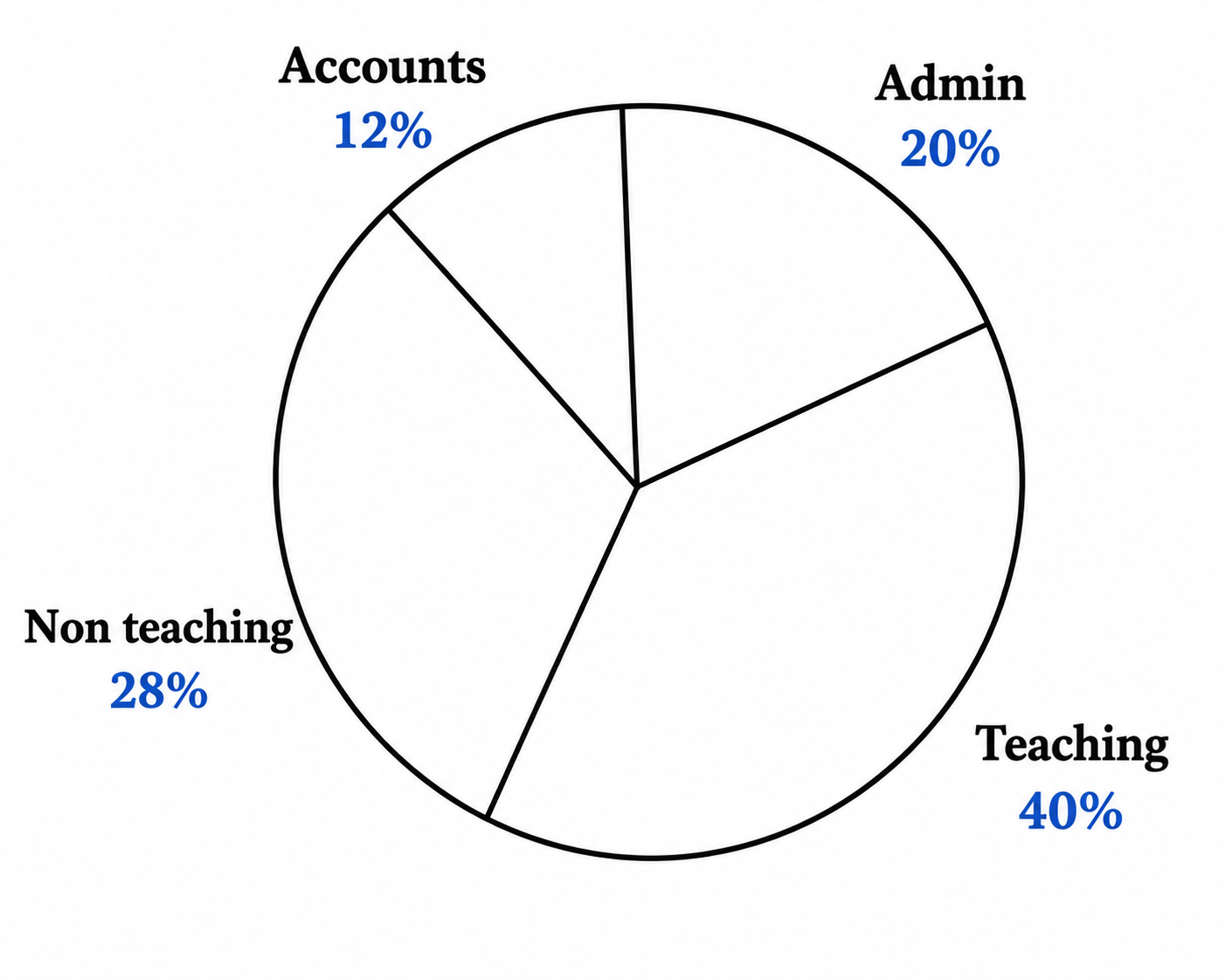

Q3

General Aptitude · Data Analysis

The pie chart shows the percentage of employees working in different departments of a University. The table shows the ratio of males to females in each of these departments. If the total number of employees $=2000$, what is the ratio between female employees in Admin and non teaching departments? $$\begin{array}{ll}Category & Male : Female \\ Accounts & 7 : 5 \\ Admin & 2 : 3 \\ Teaching & 5 : 3 \\ Non teaching & 3 : 4\end{array}$$

1. (A)3 : 4
2. (B)5 : 3
3. (C)2:3
4. (D)4 : 3

▶Show answer & solution

Q4

General Aptitude · Data Analysis

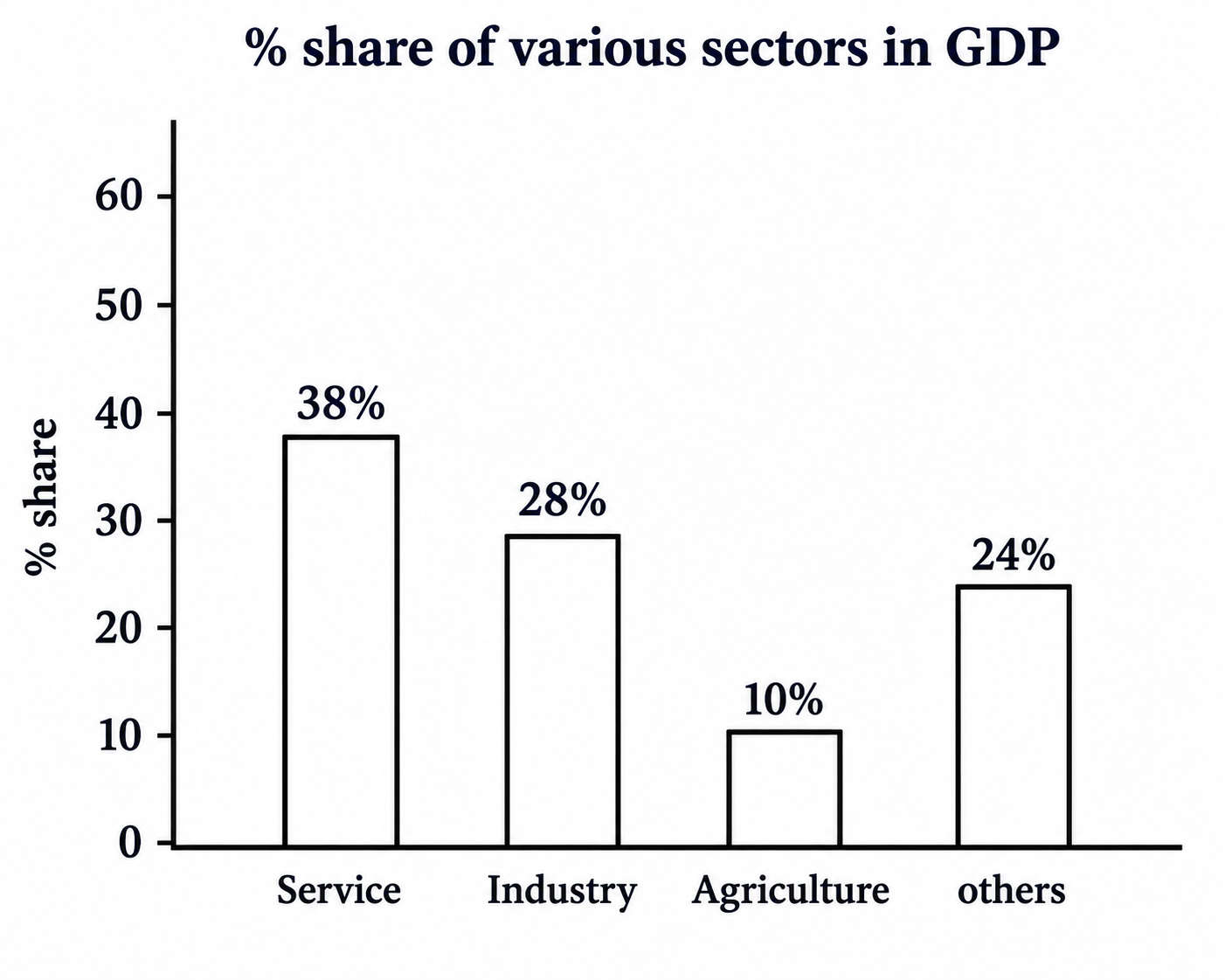

The following chart shows the sector wise percentage break up of Rs. 650 crore, which is the GDP of a small country with a population of 1 billion people. 80% of the population constitutes its working population engaged in various sector and contributing to GDP. Which of the following has lowest contribution to GDP?

1. (A)Service
2. (B)Industry
3. (C)Agriculture
4. (D)Non working population

▶Show answer & solution

Q5

General Aptitude · Mathematical Analysis

Candidate in a competitive examination consisted of $60 \%$ men and 40% woman. 70% of men and 75% of women cleared the qualifying test and entered the final test where 80% men and 70% women were successful. Which of the following statement is correct? 1. Overall success rate is below 50% 2. Success rate is higher for women 3. More men cleared the examination than women 4. Both 1 and 2

1. (A)Overall success rate is below 50%
2. (B)Success rate is higher for women
3. (C)More men cleared the examination than women
4. (D)Both 1 and 2

▶Show answer & solution

Q6

General Aptitude · Mathematical Analysis

There are four positive integers say $\mathrm{A}, \mathrm{B}, \mathrm{C}$ and D such that $\mathrm{A} \leq \mathrm{B} \leq \mathrm{C} \leq \mathrm{D}$. Consider the following statements : A. The unique mode of the data is 6. B. The median score of the data is 7. What is the minimum possible value of the largest number $D$ ?

1. (A)6
2. (B)7
3. (C)8
4. (D)9

▶Show answer & solution

Q7

General Aptitude · Mathematical Analysis

A certain sum of money becomes double of itself in 5 years at simple rate of interest. In how many years will it become 16 times of itself at the same rate of simple interest?

1. (A)80
2. (B)70
3. (C)75
4. (D)90

▶Show answer & solution

Q8

General Aptitude · Logic Reasoning

XUR, TQN, PMJ, $\_\_\_\_$ ?, HEB. Which of the following options will complete the above series by replacing the question mark?

1. (A)KHE
2. (B)LIF
3. (C)LJH
4. (D)MJG

▶Show answer & solution

Q9

General Aptitude · General Science

During the interaction of population of two different species identify the type where only one species is benefited and is detrimental to the other species.

1. (A)Commensalism and Amensalism
2. (B)Commensalism and Competition
3. (C)Parasitism and Predation
4. (D)Parasitism and Amenalism

▶Show answer & solution

Q10

General Aptitude · Mathematical Analysis

Consider the relationship statement between two natural numbers : A. the difference between them is 6. B. the difference between their squares is 60. Find the sum of the cubes of these two numbers.

1. (A)620
2. (B)520
3. (C)720
4. (D)820

▶Show answer & solution

Q11

General Aptitude · Logic Reasoning

There are four towns $\mathrm{P}, \mathrm{Q}, \mathrm{R}$ and $\mathrm{T} . \mathrm{Q}$ is to the South-West of $\mathrm{P}, \mathrm{R}$ is to the East of Q and South-East of P and T is to the North of R in line with $\mathrm{Q}, \mathrm{P}$. In which direction of P is T located?

1. (A)South-East
2. (B)North
3. (C)North-East
4. (D)East

▶Show answer & solution

Q12

General Aptitude · General Science

In which of the following, entropy will decrease?

1. (A)Water is boiled
2. (B)Sugar is dissolved in water
3. (C)Ice is heated to melt
4. (D)Egg is boiled in water

▶Show answer & solution

Q13

General Aptitude · General Science

A process is used to separate substances in chemical mixtures. What is this process known as?

1. (A)Distillation
2. (B)Filtration
3. (C)Chromatography
4. (D)Crystallisation

▶Show answer & solution

Q14

General Aptitude · Logic Reasoning

Suppose there are ' 9 ' identical gold-coins out of which 8 coins have same weight. One of the coin is counterfeit and weighs slightly less than other coins. You have a classical balance scale for weighing. What is the minimum number of weighings required to definitively isolate and identify the counterfeit coin?

1. (A)3
2. (B)4
3. (C)2
4. (D)8

▶Show answer & solution

Q15

General Aptitude · Geometry

The largest possible triangle is inscribed in a semi-circle of diameter 14 cm. What would be the area inside the semi-circle which is not occupied by the triangle?

1. (A)35 sq. cm
2. (B)30 sq. cm
3. (C)28 sq. cm
4. (D)48 sq. cm

▶Show answer & solution

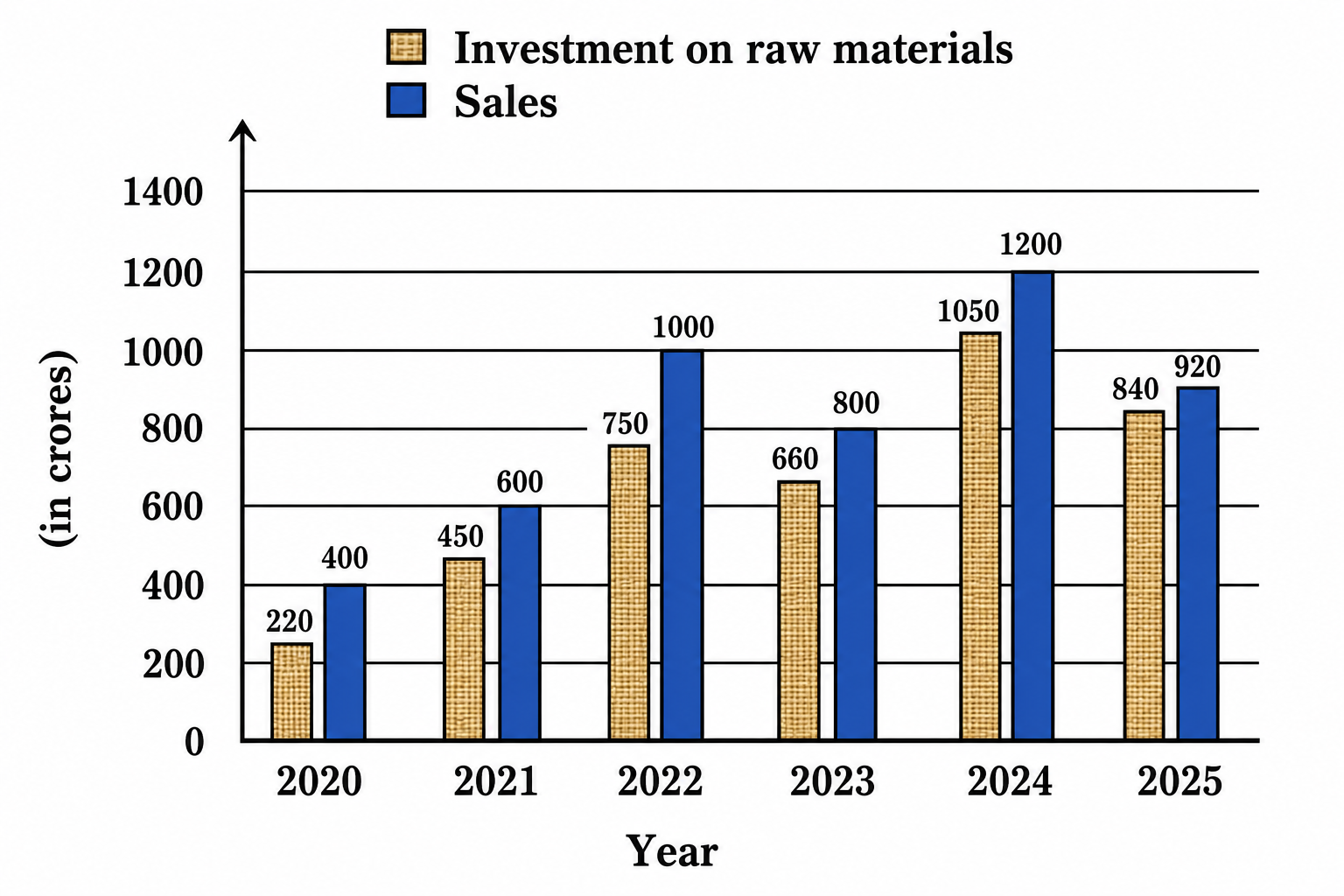

Q16

General Aptitude · Data Analysis

The graph represents investment on raw material and sales of an organization from 2020 to 2025 (calendar year) Study the bar graph and answer the question. In which year was there a maximum percentage increase in the sales of products as compared the previous year?

1. (A)2021
2. (B)2023
3. (C)2022
4. (D)2024

▶Show answer & solution

Q17

General Aptitude · Logic Reasoning

Read the following information to answer the question $\mathrm{P}+\mathrm{Q}$ means P is the brother of Q ; $\mathrm{P} \times \mathrm{Q}$ mean P is the father of Q ; $\mathrm{P}-\mathrm{Q}$ means P is the sister of Q . Which of the following relation shows that I is the niece of K?

1. (A)$\mathrm{K}+\mathrm{Y}+\mathrm{Z}-\mathrm{I}$
2. (B)$\mathrm{K}+\mathrm{Y} \times \mathrm{I}-\mathrm{Z}$
3. (C)$\mathrm{Z}-\mathrm{I} \times \mathrm{Y}+\mathrm{K}$
4. (D)$\mathrm{K} \times \mathrm{Y}+\mathrm{I}-\mathrm{Z}$

▶Show answer & solution

Q18

General Aptitude · Mathematical Analysis

There are two numbers such that the difference between them is 10 and their ratio is $5: 3$. Find the product of these two numbers

1. (A)150
2. (B)375
3. (C)275
4. (D)80

▶Show answer & solution

Q19

General Aptitude · Mathematical Analysis

The present population of a city is 6000 . If the number of males increases by $14 \%$ and the number of females increases by $22 \%$, then the population will become 6900 . What is the present population of females in the city?

1. (A)900
2. (B)700
3. (C)750
4. (D)850

▶Show answer & solution

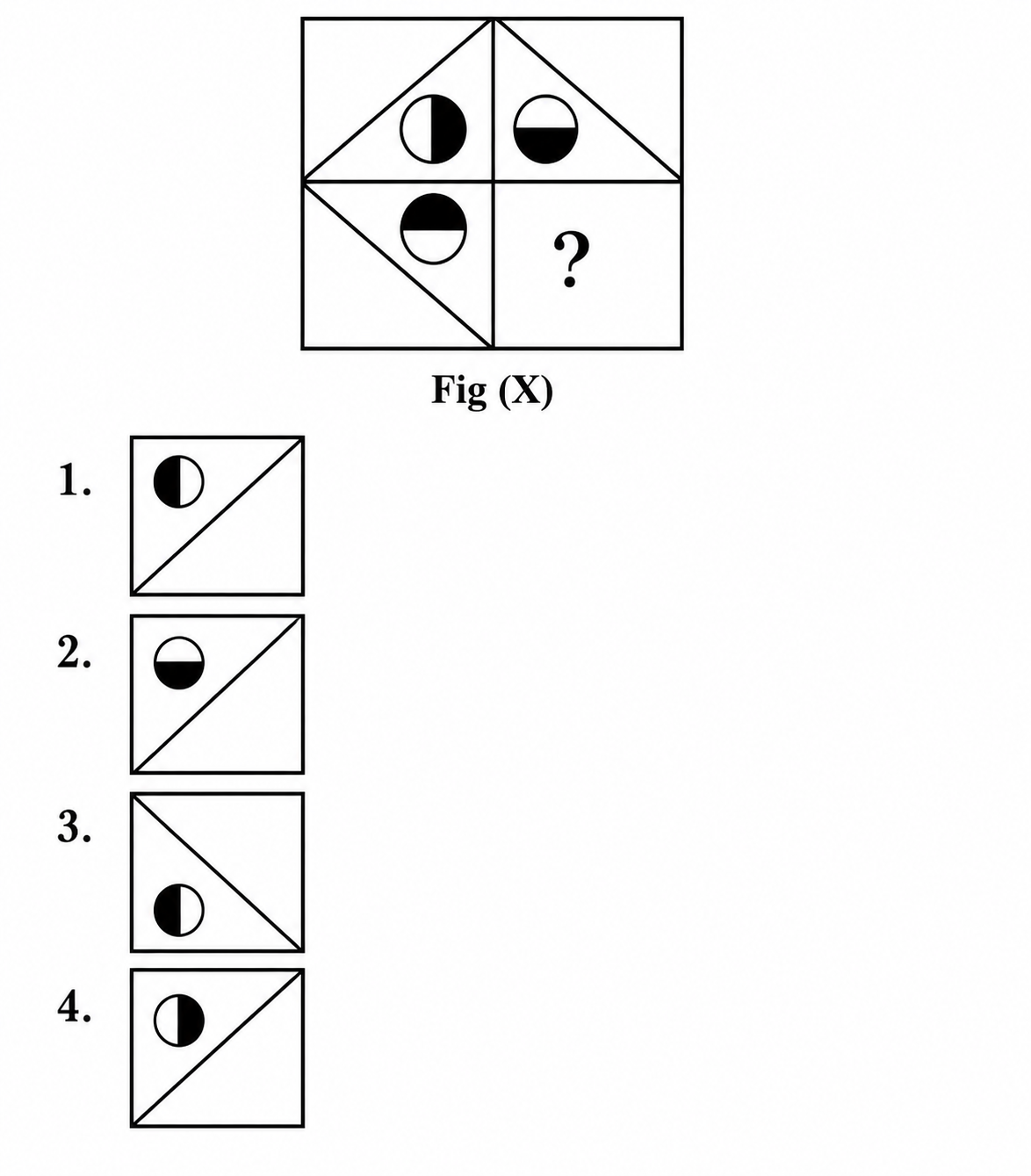

Q20

General Aptitude · Logic Reasoning

Select a figure from amongst the four alternatives which when placed in the blank space of fig (X) would complete the pattern?

1. (A)1
2. (B)2
3. (C)3
4. (D)4

▶Show answer & solution

Q21

Electronics · Digital Circuits

An analog-to-digital converter monitors the dc voltage output from a battery. The output of the converter is a three-digit binary number ABC, corresponding to battery voltage in steps of 0.5 V, with A as the most significant bit (MSB). The output of the converter is fed into a logic circuit which produces a HIGH output when the battery voltage exceeds 2 V. The expression for this logic circuit is:

1. (A)AB+AC
2. (B)$\mathrm{AB}+\mathrm{BC}+\mathrm{AC}$
3. (C)ABC
4. (D)AC

▶Show answer & solution

Q22

Electromagnetism · Electrostatics

Consider the Poisson's equation $\nabla^2 V=-\frac{q}{\epsilon_0} \delta^3(\vec{r}-\vec{a})$ in half-space $z>0$ with boundary condition $V=0$ in the $z=0$ plane. Here, $\vec{a}=a_0 \hat{k}$ with $a_0>$ 0 . If $\frac{q}{4 \pi \epsilon_0 a_0}=24 \mathrm{Volt}$, then which of the following is correct?

1. (A)At $\vec{r}=\left(0,0,2 a_0\right), V=16 \mathrm{Volt}$
2. (B)At $\vec{r}=\left(0,0,3 a_0\right), V=8$ Volt
3. (C)At $\vec{r}=\left(0,0,4 a_0\right), V=4$ Volt
4. (D)At $\vec{r}=\left(0,0, a_0 / 2\right), V=32$ Volt

▶Show answer & solution

Q23

Quantum Mechanics · Basics of Quantum Mechanics

You are given a time-independent observable $O$ for a system with time independent Hamiltonian $H$ and a general time dependent state $|\phi(t)\rangle$. If the expectation value $\langle O(t)\rangle_\phi=\langle\phi(t)| O|\phi(t)\rangle$, then consider the following statements (A) to (D) and choose the correct option. (A) If $O$ commutes with $H$ then $\langle O(t)\rangle_\phi$ is independent of time. (B) If $|\phi(t)\rangle$ is an eigen state of $H$ then $\langle O(t)\rangle_\phi$ is independent of time. (C) If $|\phi(t)\rangle$ is an eigen state of $O$ then $\langle O(t)\rangle_\phi$ is independent of time. (D) If $|\phi(t)\rangle$ is an eigen state of $[O, H]$ then $\langle O(t)\rangle_\phi$ is independent of time.

1. (A)Only (A) and (B) are correct
2. (B)Only (A) is correct
3. (C)Only (B), (C) and (D) are correct
4. (D)Only (A), (B) and (C) are correct

▶Show answer & solution

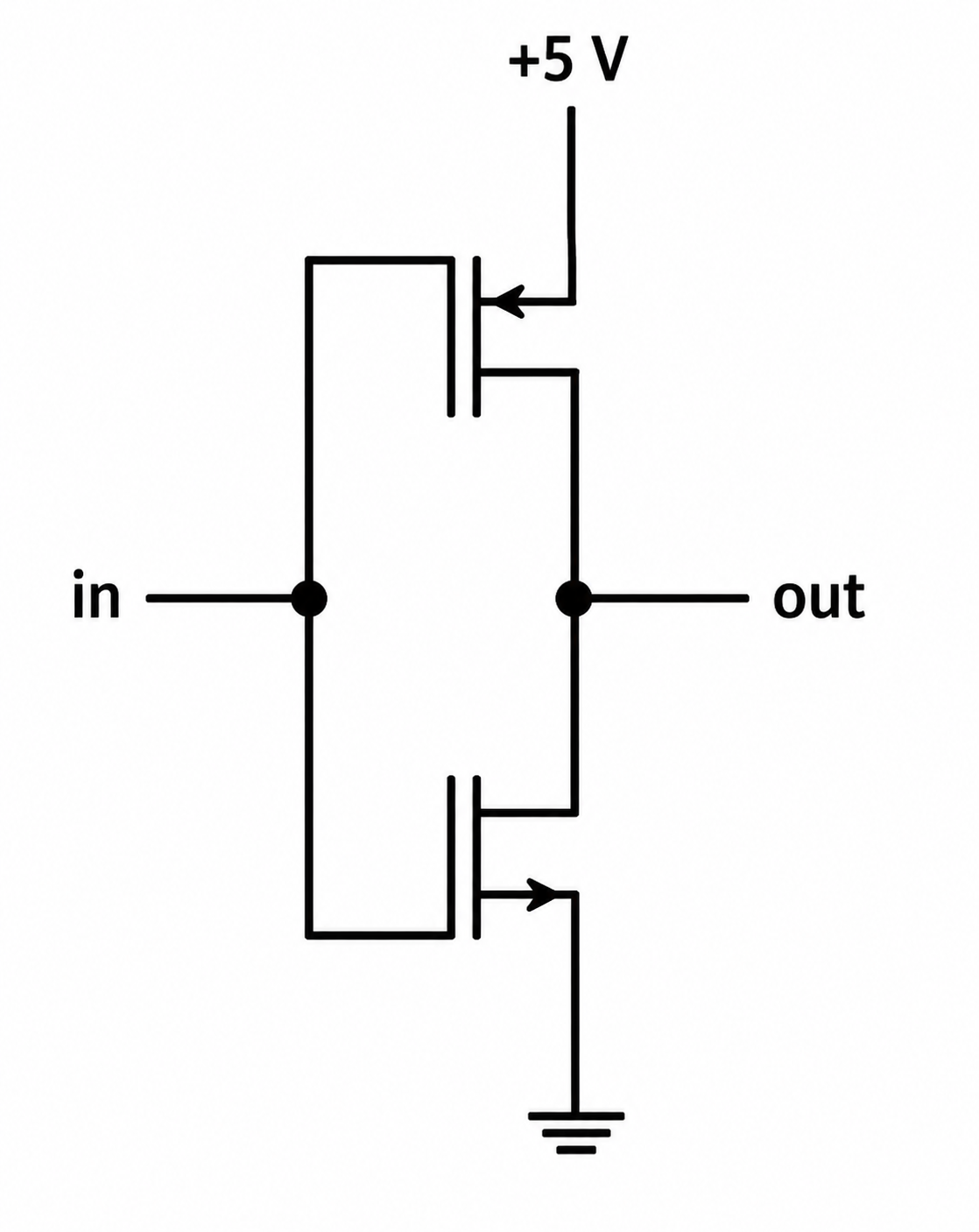

Q24

Electronics · FET

The circuit shown below could be used as a:

1. (A)TTL NOT Gate
2. (B)TTL Buffer
3. (C)CMOS NOT Gate
4. (D)CMOS Buffer

▶Show answer & solution

Q25

Quantum Mechanics · Basics of Quantum Mechanics

A particle is in the ground state of a one-dimensional infinite well potential with walls at $x=0$ and at $x=a$. The wall at $x=a$ is moved to $x=2 a$ in two separate, sudden and adiabatic, protocols so that $\langle E\rangle_s$ and $\langle E\rangle_a$ are the respective expectation values of the energy in the final states. Then the ratio $\frac{\langle E\rangle_s}{\langle E\rangle_a}$ is :

1. (A)4:1
2. (B)2:1
3. (C)1:1
4. (D)1:4

▶Show answer & solution

Q26

Mathematical Physics · Matrices

Consider two operators $\widehat{R}$ and $\widehat{S}$ where $\widehat{R}$ commutes with $[\widehat{R}, \widehat{S}]$. If $\alpha$ is a constant, then $\left[e^{\alpha \hat{R}}, \hat{S}\right]$ is:

1. (A)$\left[\hat{R}^\alpha, \hat{S}\right]$
2. (B)$\alpha e^{\alpha \hat{R}}[\hat{R}, \hat{S}]$
3. (C)0
4. (D)$\alpha e^{\hat{R}}\left[e^\alpha \hat{R}, \hat{S}\right]$

▶Show answer & solution

Q27

Optics · Polarization

A linearly polarized electromagnetic wave is incident normally on a material of refractive index $n_R$ for right circular polarization and $n_L$ for left circular polarization, where $n_R \neq n_L$. The reflected wave's polarization is :

1. (A)Linear
2. (B)Elliptical
3. (C)Circular
4. (D)Random

▶Show answer & solution

Q28

Mathematical Physics · Vector Calculus

In a 4 -dimensional vector space $V_4$, three linearly independent vectors are given by $\boldsymbol{e}_{\mathbf{1}}=(1,1,0,0), \boldsymbol{e}_2=(0,1,1,0)$ and $\boldsymbol{e}_3=(0,0,1,1)$. Which of the following vector $\boldsymbol{e}_{\mathbf{4}}$ will make $\left\{\boldsymbol{e}_{\mathbf{1}}, \boldsymbol{e}_{\mathbf{2}}, \boldsymbol{e}_{\mathbf{3}}, \boldsymbol{e}_{\mathbf{4}}\right\}$ a basis of $V_4$ ?

1. (A)(1,1,1,1)
2. (B)(1,1,1,0)
3. (C)(1,0,-1,0)
4. (D)(0,1,1,0)

▶Show answer & solution

Q29

Statistical Mechanics · Microstates and Microcanonical ensemble

A micro-canonical ensemble consists of six non-interacting and distinguishable spin 1 particles in a uniform magnetic field. Each particle can thus be in energy states $-E_0, 0$ and $E_0$. The number of microstates in the state with total energy zero is:

1. (A)51
2. (B)191
3. (C)141
4. (D)55

▶Show answer & solution

Q30

Classical Mechanics · Small Oscillations

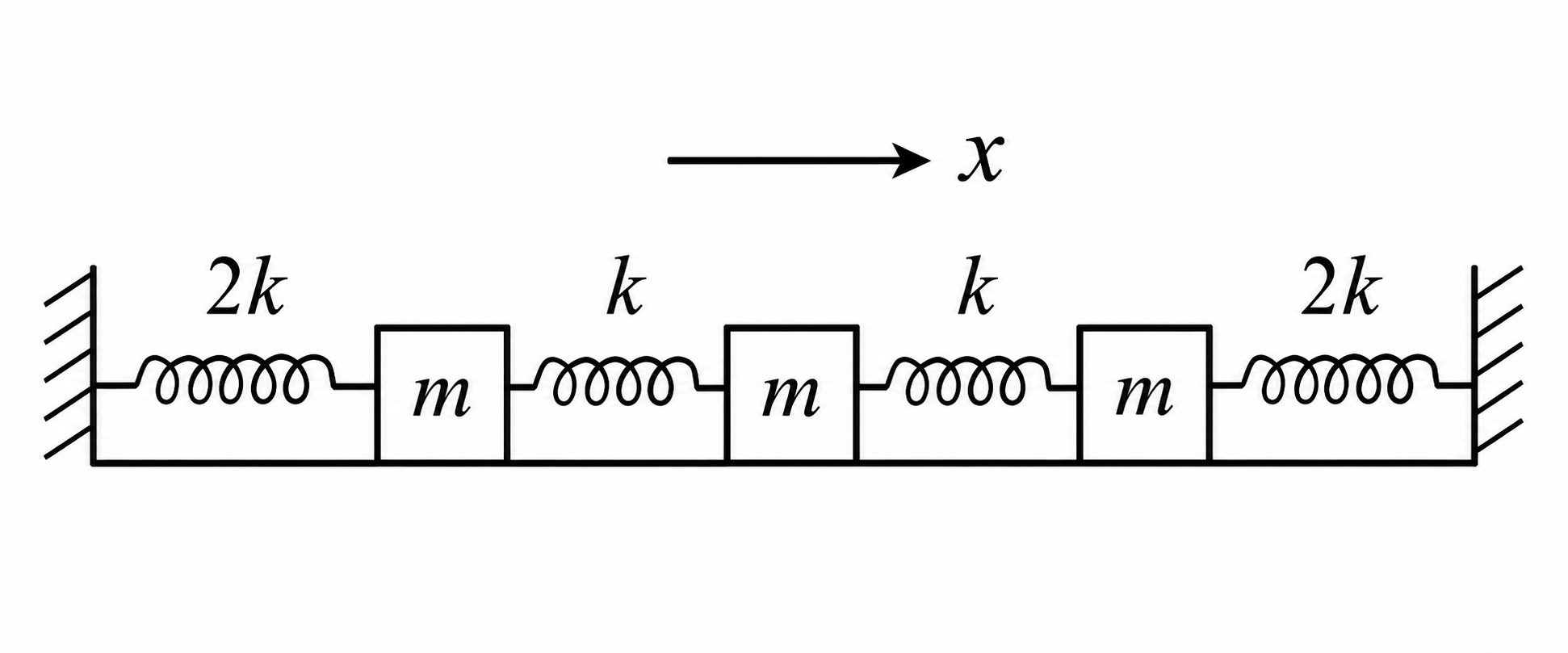

Three equal masses $m$ are free to move along $x$-axis on a frictionless surface. The masses are coupled together, and to a rigid wall, by springs as shown in the figure. If $\omega_0=\sqrt{\frac{k}{m}}$, and the angular frequencies of the three normal modes of this system are $\omega_1, \omega_2$ and $\omega_3$ then the value of $\omega_1^2+\omega_2^2+\omega_3^2$ is:

1. (A)$9 \omega_0^2$
2. (B)$6 \omega_0^2$
3. (C)$10 \omega_0^2$
4. (D)$8 \omega_0^2$

▶Show answer & solution

Q31

Quantum Mechanics · Spin and Total Angular momentum

Consider the spin matrix $S_r$ projected along the radial direction in spherical polar coordinates $(r, \theta, \varphi)$. The probability that a measurement of $S_r$ on the state $|\beta\rangle=\binom{\sin \frac{\theta}{2}}{e^{i \varphi} \cos \frac{\theta}{2}}$ will yield the value $\frac{\hbar}{2}$ is:

1. (A)$\sin ^2 \theta$
2. (B)$\cos ^2 \theta$
3. (C)$\frac{1}{2}$
4. (D)$\cos ^2 \frac{\theta}{2}$

▶Show answer & solution

Q32

Thermodynamics · Phase transition

Water, having density $1 \mathrm{gm} / \mathrm{cm}^3$, freezes into ice at 273 K temperature and 1 atm pressure. The latent heat of melting of ice is $334 \mathrm{~J} / \mathrm{gm}$ and the density of ice is $0.917 \mathrm{gm} / \mathrm{cm}^3$. Then for the melting temperature $\left(T_m\right)$ which of the following options is correct?

1. (A)At 140 atm pressure, $T_m \simeq 274 \mathrm{~K}$.
2. (B)At 420 atm pressure, $T_m \simeq 274 \mathrm{~K}$.
3. (C)At 140 atm pressure, $T_m \simeq 272 \mathrm{~K}$.
4. (D)At 420 atm pressure, $T_m \simeq 272 \mathrm{~K}$.

▶Show answer & solution

Q33

Classical Mechanics · Central Forces

A particle moves in an orbit $r=k \exp (\alpha \theta)$ under a central force $F(r)$. Here, $k$ and $\alpha$ are constants and $k>0$. Then $F(r)$ is proportional to:

1. (A)$\frac{1}{r}$
2. (B)$\frac{1}{r^2}$
3. (C)$\frac{1}{r^3}$
4. (D)$\frac{1}{r^4}$

▶Show answer & solution

Q34

Classical Mechanics · Lagrangian and Hamiltonian

The Lagrangian of a system is given by $L=x^2+x \dot{x}+\frac{\dot{x}^2}{2}$. If $p$ is the generalized momentum, then the corresponding Hamiltonian is:

1. (A)$\frac{\left(p^2-x^2-2 x p\right)}{2}$
2. (B)$\frac{\left(p^2-x^2+2 x p\right)}{2}$
3. (C)$\frac{\left(p^2+x^2+2 x p\right)}{2}$
4. (D)$\frac{\left(p^2+x^2-2 x p\right)}{2}$

▶Show answer & solution

Q35

Classical Mechanics · Lagrangian and Hamiltonian

A particle with charge $q$, which is confined to move in the $x y$-plane, is subjected to a magnetic field with magnitude $B$ pointing in the $+z$ direction. The particle moves in a circle ( $C$ ) of radius $R$. If $\vec{p}$ is the canonical momentum then the following integral $$\oint_C \vec{p} \cdot d \vec{l}$$ has the magnitude: ( $d \vec{l}$ is in the direction of motion)

1. (A)$q B \pi R^2$
2. (B)$2 q B \pi R^2$
3. (C)$3 q B \pi R^2$
4. (D)$4 q B \pi R^2$

▶Show answer & solution

Q36

Classical Mechanics · Lagrangian and Hamiltonian

A bead of mass $M$ slides along a smooth frictionless and massless wire which is bent in the shape of a parabola $z=c r^2$ in cylindrical coordinates $(r, \phi, z)$. Here $c$ is a positive constant. The wire is made to rotate about z-axis at constant angular velocity. Which of the following statements about this system of the wire and the bead is correct?

1. (A)Energy is conserved but angular momentum is not conserved
2. (B)Energy is not conserved but angular momentum is conserved
3. (C)Both energy and angular momentum are conserved
4. (D)Both energy and angular momentum are not conserved

▶Show answer & solution

Q37

Mathematical Physics · Complex Analysis

The value of the integral: $$\oint \frac{d \theta}{5-4 \cos \theta}$$ over the circle $|z|=1$ in the anti-clockwise direction can be calculated by substituting $z=e^{i \theta}$. The value of the integral is:

1. (A)$\frac{2 \pi}{3}$
2. (B)$\frac{\pi}{3}$
3. (C)$\pi$
4. (D)$\frac{4 \pi}{3}$

▶Show answer & solution

Q38

Quantum Mechanics · Basics of Quantum Mechanics

The eigen energies and the normalized eigenfunctions in the $n^{\text {th }}$ state of a particle, confined in a one-dimensional infinite potential well, are denoted by $E_n$ and $\psi_n$, respectively. If $E_1=1.2 \mathrm{eV}$ then the expectation value of energy in the state $\psi=3 \psi_1+2 \psi_2+\sqrt{3} \psi_4$ is close to:

1. (A)$\quad 5.5$ eV
2. (B)$\quad 5.0$ eV
3. (C)$\quad 4.5$ eV
4. (D)$\quad 6.0$ eV

▶Show answer & solution

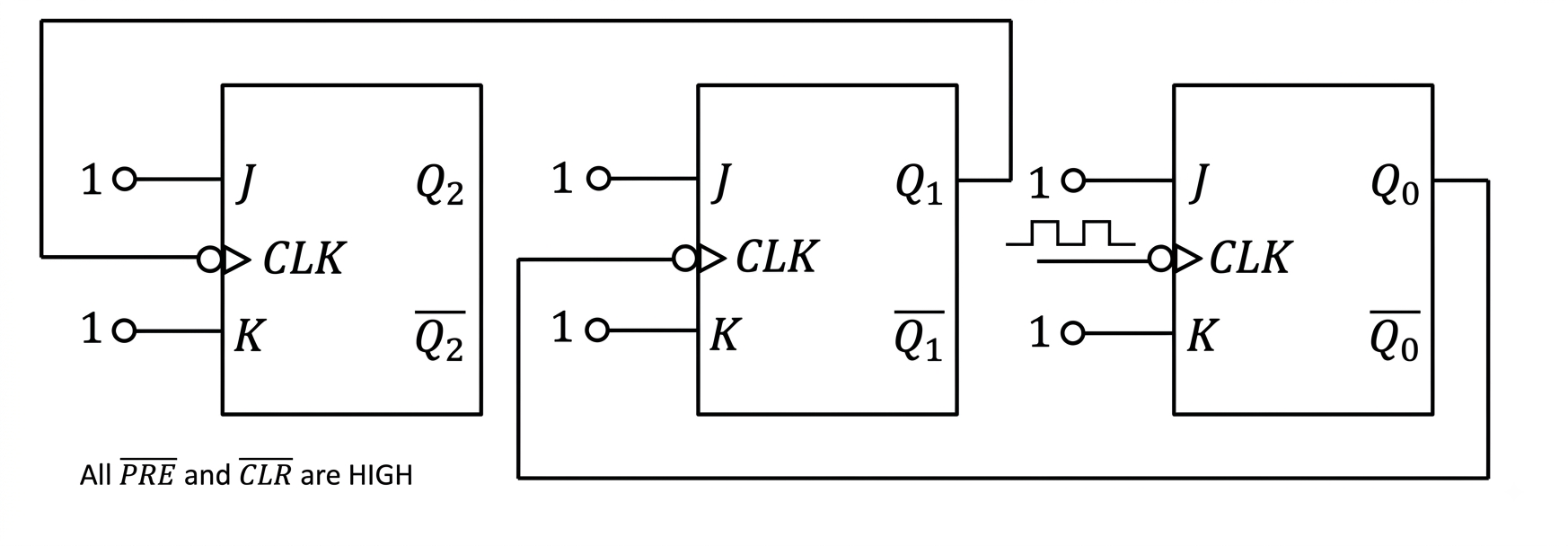

Q39

Electronics · Digital Circuits

Three J-K flip-flops are connected together to make a counter as shown in the figure. The J and K inputs are tied to logical 1 and a clock pulse is applied only to CLK input of the flip flop $Q_0$. If the counter is initially in the state $Q_2 Q_1 Q_0=100$, then the state of the counter after 9 clock cycles is:

1. (A)$Q_2 Q_1 Q_0=001$
2. (B)$Q_2 Q_1 Q_0=110$
3. (C)$Q_2 Q_1 Q_0=101$
4. (D)$Q_2 Q_1 Q_0=111$

▶Show answer & solution

Q40

Quantum Mechanics · Basics of Quantum Mechanics

A three-state system is described by a certain Hamiltonian having eigen energies $E_0, 2 E_0$ and $3 E_0$ with the corresponding eigen states $\left(\begin{array}{l}1 \\ 1 \\ 1\end{array}\right),\left(\begin{array}{c}1 \\ 0 \\ -1\end{array}\right)$ and $\left(\begin{array}{c}1 \\ -2 \\ 1\end{array}\right)$, respectively. If the state of the system at time $t=0$ is $\left(\begin{array}{l}1 \\ 0 \\ 0\end{array}\right)$, then what is the probability of finding the system in the same state at time $t=\frac{\pi h}{2 E_0}$ ?

1. (A)1
2. (B)$\frac{1}{3}$
3. (C)$\frac{5}{18}$
4. (D)$\frac{2}{9}$

▶Show answer & solution

Q41

Atomic and Molecular Physics · Effects and coupling in atom

Vanadium has electron configuration $[A r] 3 d^3 4 s^2$. In $L S$ coupling, its ground state configuration is

1. (A)${ }^4 F_9$
2. (B)$^2 P_{\frac{1}{2}}$
3. (C)${ }^4 F_{\frac{3}{2}}$
4. (D)$^4 S_{\frac{3}{2}}$

▶Show answer & solution

Q42

Mathematical Physics · Vector Calculus

In spherical polar coordinates $(r, \theta, \phi), \frac{\partial \widehat{\theta}}{\partial \phi}$ is :

1. (A)$\cos \theta \hat{\phi}$
2. (B)0
3. (C)$\sin \theta \hat{\phi}$
4. (D)$-\cos \theta \hat{r}$

▶Show answer & solution

Q43

Thermodynamics · Laws and thermodynamic processes

Internal energy of one mole of a non-ideal gas is given by $U=\frac{3}{2} R T-\frac{a}{V}$, where $V$ is volume of the gas at temperature $T$ and $a$ is a positive constant. An insulated container of volume $V_2$ contains this gas confined in a volume $V_1$ at temperature $T_1$. The remaining volume $V_2-V_1$ of this container, which is in vacuum, is separated by a wall. The wall is suddenly removed which makes the gas volume $V_2$ and temperature $T_2$. The temperature $T_2$ is: ( $R$ is the molar gas constant)

1. (A)$T_1+\frac{2 a}{3 R}\left(\frac{1}{V_2}+\frac{1}{V_1}\right)$
2. (B)$T_1-\frac{2 a}{3 R}\left(\frac{1}{V_2}+\frac{1}{V_1}\right)$
3. (C)$T_1+\frac{2 a}{3 R}\left(\frac{1}{V_2}-\frac{1}{V_1}\right)$
4. (D)$T_1-\frac{2 a}{3 R}\left(\frac{1}{V_2}-\frac{1}{V_1}\right)$

▶Show answer & solution

Q44

Quantum Mechanics · Spin and Total Angular momentum

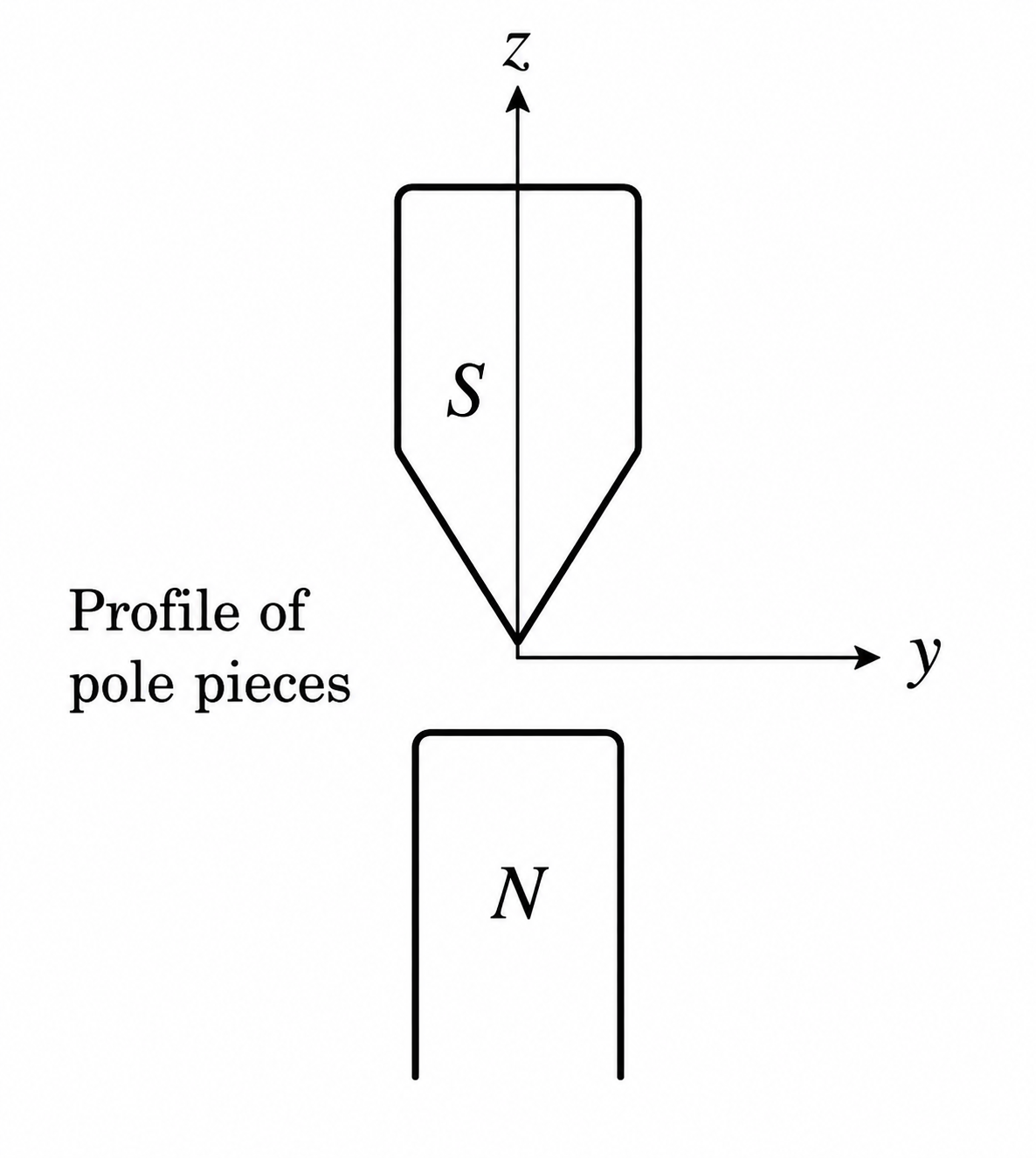

A beam of copper atoms $\left(\mathrm{Cu}:[\mathrm{Ar}] 4 \mathrm{~s}^1 3 \mathrm{~d}^{10}\right)$ is passed through a Stern-Gerlach setup (see figure). If the gradient of the $z$-component of the magnetic field in the $z$-direction is $10^3$ Tesla $/ \mathrm{m}$, then the magnitude of the $z$-component of the force on an atom is: ( $\mu_B$ is the Bohr magneton)

1. (A)$5 \times 10^2 \mu_B$
2. (B)$10^3 \mu_B$
3. (C)0
4. (D)$2 \pi \times 10^3 \mu_B$

▶Show answer & solution

Q45

Statistical Mechanics · Microstates and Microcanonical ensemble

Two particles occupy ten degenerate energy levels. There are three possible scenarios where the two particles are either identical bosons or identical fermions or distinguishable particles, with the associated number of accessible microstates denoted as $\Omega_B, \Omega_{\mathrm{F}}$ and $\Omega_C$, respectively. Then, which of the following options is correct?

1. (A)$\Omega_B=55, \Omega_F=45, \Omega_C=100$
2. (B)$\Omega_B=65, \Omega_F=55, \Omega_C=100$
3. (C)$\Omega_B=45, \Omega_F=25, \Omega_C=55$
4. (D)$\Omega_B=55, \Omega_F=45, \Omega_C=75$

▶Show answer & solution

Q46

Mathematical Physics · Numerical Methods

The integral $$\int_0^4 x^4 d x$$ when computed numerically using Simpson's $1 / 3^{\text {rd }}$ method and trapezoidal method, each with unit step size, yields values $I_s$ and $I_t$, respectively. Then which of the following options is correct?

1. (A)$I_s=205.3, I_t=226.0$
2. (B)$I_s=205.3, I_t=205.3$
3. (C)$I_s=204.8, I_t=226.0$
4. (D)$I_s=226.0, \quad I_t=226.0$

▶Show answer & solution

Q47

Electronics · High Frequency devices

Modulation techniques are used to shift a signal to higher frequencies to

1. (A)remove the effects of white noise.
2. (B)reduce the effects of $1 / f$-noise and drift.
3. (C)reduce shot noise and Johnson noise.
4. (D)smoothen the signal and amplify it.

▶Show answer & solution

Q48

Nuclear and Particle Physics · Particle Physics

A kaon ( $K^0$ ) decays into two neutral pions ( $\pi^0$ ). Given that the mass of the $K^0$ is $495 M e V / c^2$ and the mass of the $\pi^0$ is $135 M e V / c^2$, the final momentum of the $\pi^0$ (in $M e V / c$ ) in the center of mass frame is approximately:

1. (A)207
2. (B)359
3. (C)157
4. (D)103

▶Show answer & solution

Q49

Experimental techniques · Error analysis

In an experiment, a student generates 100 random numbers drawn from a uniform distribution in the interval $(0,1)$ and calculates their mean. If the experiment is repeated 100 times, then the standard deviation of the means is:

1. (A)$\frac{1}{20 \sqrt{3}}$
2. (B)$\frac{1}{2 \sqrt{3}}$
3. (C)$\frac{1}{\sqrt{3}}$
4. (D)$\frac{1}{200 \sqrt{3}}$

▶Show answer & solution

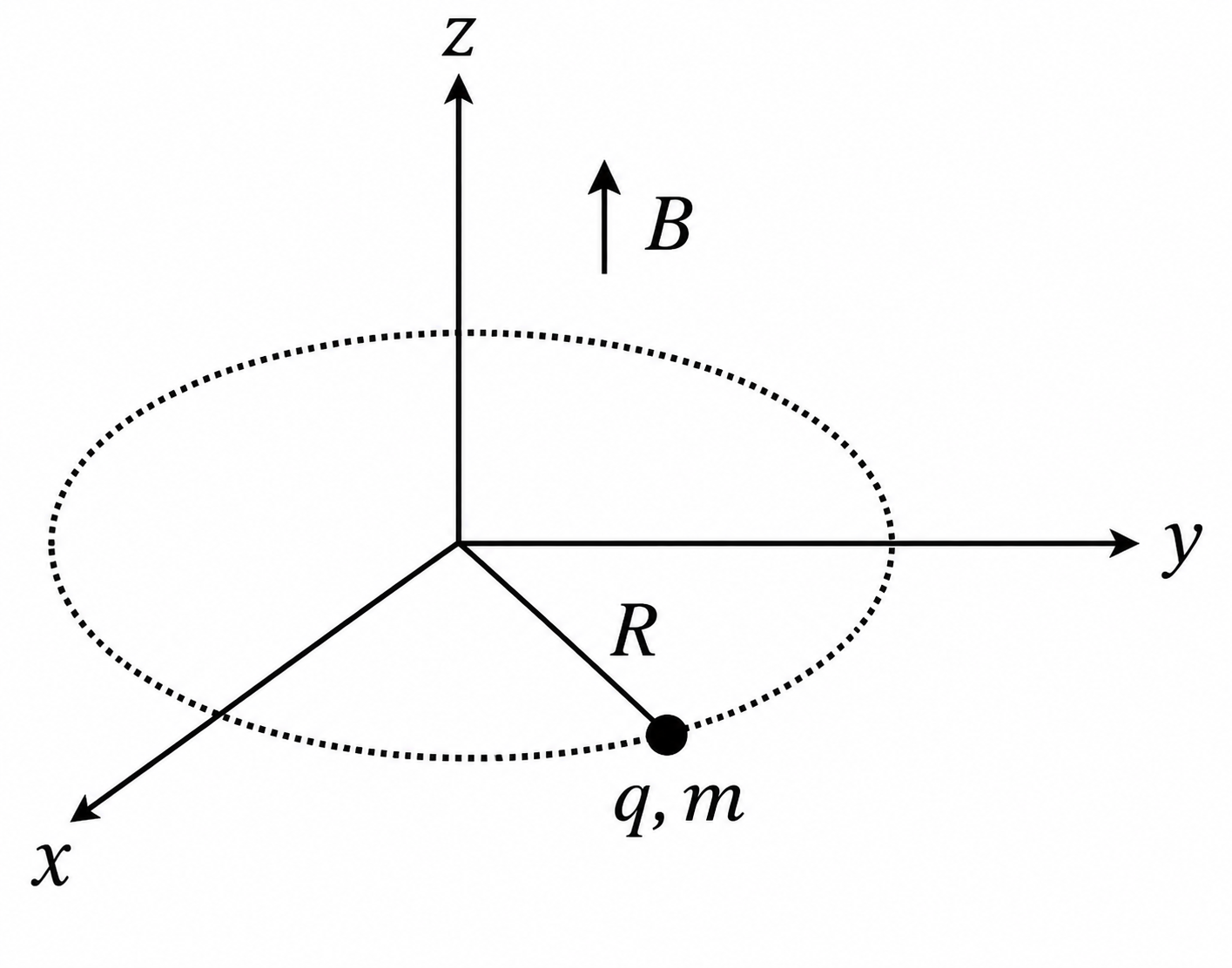

Q50

Electromagnetism · Electromagnetic Induction

A particle of mass $m$ and charge $q$ is fixed at one end of a rigid insulating rod of length $R$. The other end of the rod is pivoted such that it can rotate about the $z$-axis in the $x y$-plane as shown in the figure. A time dependent magnetic field $\vec{B}=\beta t \hat{z}$ is turned on at $t=0$. Here $\beta$ is a constant. Then the force in the rod at time $t$ will be:

1. (A)Compressive and of magnitude $q^2 \beta^2 t^2 R / m$
2. (B)Zero
3. (C)Compressive and of magnitude $q^2 \beta^2 t^2 R /(4 m)$
4. (D)Tensile and of magnitude $q^2 \beta^2 t^2 R /(4 m)$

▶Show answer & solution

Q51

Quantum Mechanics · Pertubation Theory

The Hamiltonian of a particle of mass $m$, moving in a circle of a fixed radius $R$, is given by $H_0=\frac{L_z^2}{2 m R^2}$, where $L_z=-i \hbar \frac{d}{d \phi}$ and $\phi$ is the azimuthal angle. This particle is perturbed by $H^{\prime}=V \cos (2 \phi)$ with $V \ll \frac{\hbar^2}{2 m R^2}$. Within the first-order degenerate perturbation theory, the magnitude of the energy splitting of the first excited state is:

1. (A)$\frac{V}{2}$
2. (B)$V$
3. (C)$2 V$
4. (D)$\frac{V}{4}$

▶Show answer & solution

Q52

Classical Mechanics · Poisson bracket and laplace transform

For a one-dimensional system the Hamiltonian is given by $H=\frac{p^2}{2}-\frac{1}{2 q^2}$. If a constant of motion of the system is $\left(a p q+b p^2 t+\frac{c t}{q^2}\right)$, where $a, b$ and $c$ are constants and $t$ denotes the time, then which of the following options is correct:

1. (A)$a=b=c$
2. (B)$a=-b=c$
3. (C)$a=-b=-c$
4. (D)$a=b=-c$

▶Show answer & solution

Q53

Statistical Mechanics · Ising Model

There is a ferromagnetic interaction $J$ between two Ising spins, $S_1, S_2= \pm 1$, and they are under the influence of an external magnetic field $h$. The Hamiltonian of this system is, $$H=-J S_1 S_2-h S_1-h S_2 .$$ The spins are in equilibrium at temperature $T$ and $\beta=1 / k_B T$ with $k_B$ as Boltzmann constant. The average value of either spin, for small $h$, is:

1. (A)$\frac{4 h \exp (\beta J)}{\cosh (\beta J)}$
2. (B)$\frac{h \exp (2 \beta J)}{\cos (\beta J)}$
3. (C)$\frac{8 h \exp (4 \beta J)}{\sinh (\beta J)}$
4. (D)$\frac{2 h \exp (2 \beta J)}{\sin (\beta J)}$

▶Show answer & solution

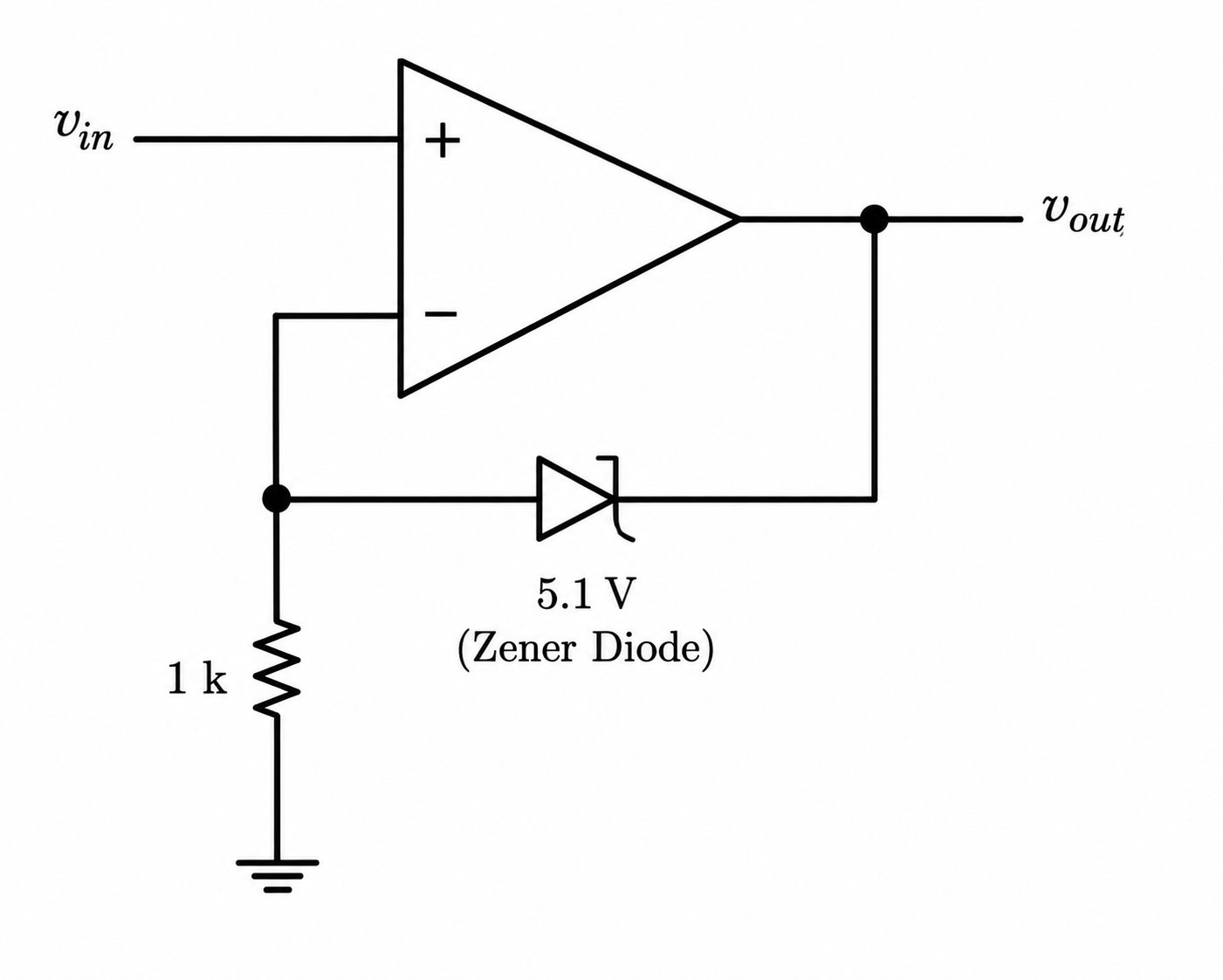

Q54

Electronics · Amplifiers and OPAMP

In the circuit shown below, if $V_{\text {in }}=2.0 \mathrm{~V}$ then $V_{\text {out }}$ is

1. (A)2.0 V
2. (B)3.1 V
3. (C)5.1 V
4. (D)7.1 V

▶Show answer & solution

Q55

Quantum Mechanics · Hydrogen atom (Radial and orbital angular momentum)

The Hamiltonian of a quantum mechanical system is given by $\widehat{H}=\alpha \widehat{L}^2+\beta \hbar \widehat{L}_z$. Here, $\alpha$ and $\beta$ are positive constants and $\widehat{L}$ represents the orbital angular momentum operator. If $l$ and $m$ are the azimuthal and magnetic quantum numbers then the lowest energy state for this system is:

1. (A)$l=1, m=-1$ for $\alpha=\beta$
2. (B)$l=0, m=0$ for $\alpha<\frac{\beta}{2}$
3. (C)$l=1, m=-1$ for $\alpha<\frac{\beta}{2}$
4. (D)$l=1, m=+1$ for $\alpha<\frac{\beta}{2}$

▶Show answer & solution

Q56

Optics · Lasers

A container has a gas at temperature $T$ with its $N_1$ molecules in the ground state and $N_2$ molecules in the excited state of energy $h v$. Both the levels are non-degenerate and A and B are the Einstein coefficients for spontaneous and stimulated emissions, respectively, between the two levels. Then the spectral density $\rho(v, T)$ of radiation inside the container is proportional to:

1. (A)$\frac{A}{B}\left(\frac{N_2}{N_1-N_2}\right)$
2. (B)$\frac{A}{B}\left(\frac{N_2}{N_1+N_2}\right)$
3. (C)$\frac{N_2}{\left(\frac{A}{B}\right) N_1-N_2}$
4. (D)$\frac{N_2}{\left(\frac{A}{B}\right) N_1+N_2}$

▶Show answer & solution

Q57

Quantum Mechanics · Pertubation Theory

Consider a particle of mass $m$ in an infinite potential well with walls at $x=0$ and $x=2 L$. The particle is perturbed by a weak perturbation $H^{\prime}=V_0 L \delta(x-3 L / 2)$. The first-order correction to its first excited state energy is:

1. (A)$2 V_0$
2. (B)$V_0$
3. (C)$\frac{V_0}{2}$
4. (D)0

▶Show answer & solution

Q58

Electromagnetism · Waveguides and Transmission Line

Transverse electric modes $T E_{m n}$ propagate in a hollow straight infinite metallic waveguide having rectangular cross section of sides 3 cm and 2 cm. The frequency (in GHz ) of the lowest degenerate mode is: (Given: speed of light $=3 \times 10^8 \mathrm{~m} / \mathrm{s}$ )

1. (A)5.0
2. (B)7.5
3. (C)9.0
4. (D)15.0

▶Show answer & solution

Q59

Nuclear and Particle Physics · Nuclear Models

Assume a spherically uniform charge distribution in a nucleus having mass number $A$ and radius $R=R_0 A^{1 / 3}$ with $R_0 \approx 1.5 \mathrm{fm}$. If the difference in electrostatic energy between two mirror nuclei, ${ }_z^A X$ and ${ }_{z-1}^A Y$, is 3.53 MeV, then the value of atomic number $Z$ is closest to: (Given: $\frac{e^2}{4 \pi \epsilon_0} \approx 1.44 \mathrm{MeV} . \mathrm{fm}$ and $1 \mathrm{fm}=10^{-15} \mathrm{~m}$ )

1. (A)6
2. (B)8
3. (C)10
4. (D)12

▶Show answer & solution

Q60

Condensed Matter Physics · Superconductivity

In a superconductor, the current density $\vec{J}$ and magnetic field $\vec{B}$ are related by the equation: (Here, $n$ is the number density of electrons, $e$ is electron charge, $m_e$ is electron mass and $\mu_0$ is permeability of vacuum.)

1. (A)$\frac{\partial}{\partial t}\left(\vec{\nabla} \times \vec{\jmath}-\frac{n e^2}{m_e} \vec{B}\right)=0$
2. (B)$\left(\vec{\nabla} \times \vec{\jmath}+\frac{n e^2}{m_e} \vec{B}\right)=0$
3. (C)$\left(\nabla^2 \vec{B}-\mu_0 \vec{\nabla} \times \vec{\jmath}\right)=0$
4. (D)$\left(\nabla^2 \vec{\jmath}-\mu_0 \vec{\nabla} \times \vec{B}\right)=0$

▶Show answer & solution

Q61

Mathematical Physics · Complex Analysis

Consider a complex analytic function $f(x, y)=u(x, y)+i v(x, y)$. If $u(x, y)=x^3-3 x y^2$, then $v(x, y)$ is:

1. (A)$y^3-3 x y^2$
2. (B)$3 x y^2-y^3$
3. (C)$3 x^2 y-y^3$
4. (D)$y^3+3 x y^2$

▶Show answer & solution

Q62

Electromagnetism · Relativistic EMT

An inertial observer $S$ finds the electric field due to a large rectangular parallel plate capacitor to be directed along the $y$-axis. For another observer, moving at a relativistic speed with respect to $S$ along the positive $x$-axis, which of the following statements is correct for the electric field:

1. (A)Direction remains same but magnitude increases
2. (B)Direction remains same but magnitude decreases
3. (C)Direction and magnitude both remain the same
4. (D)Direction tilts towards $x$-axis but the magnitude remains same

▶Show answer & solution

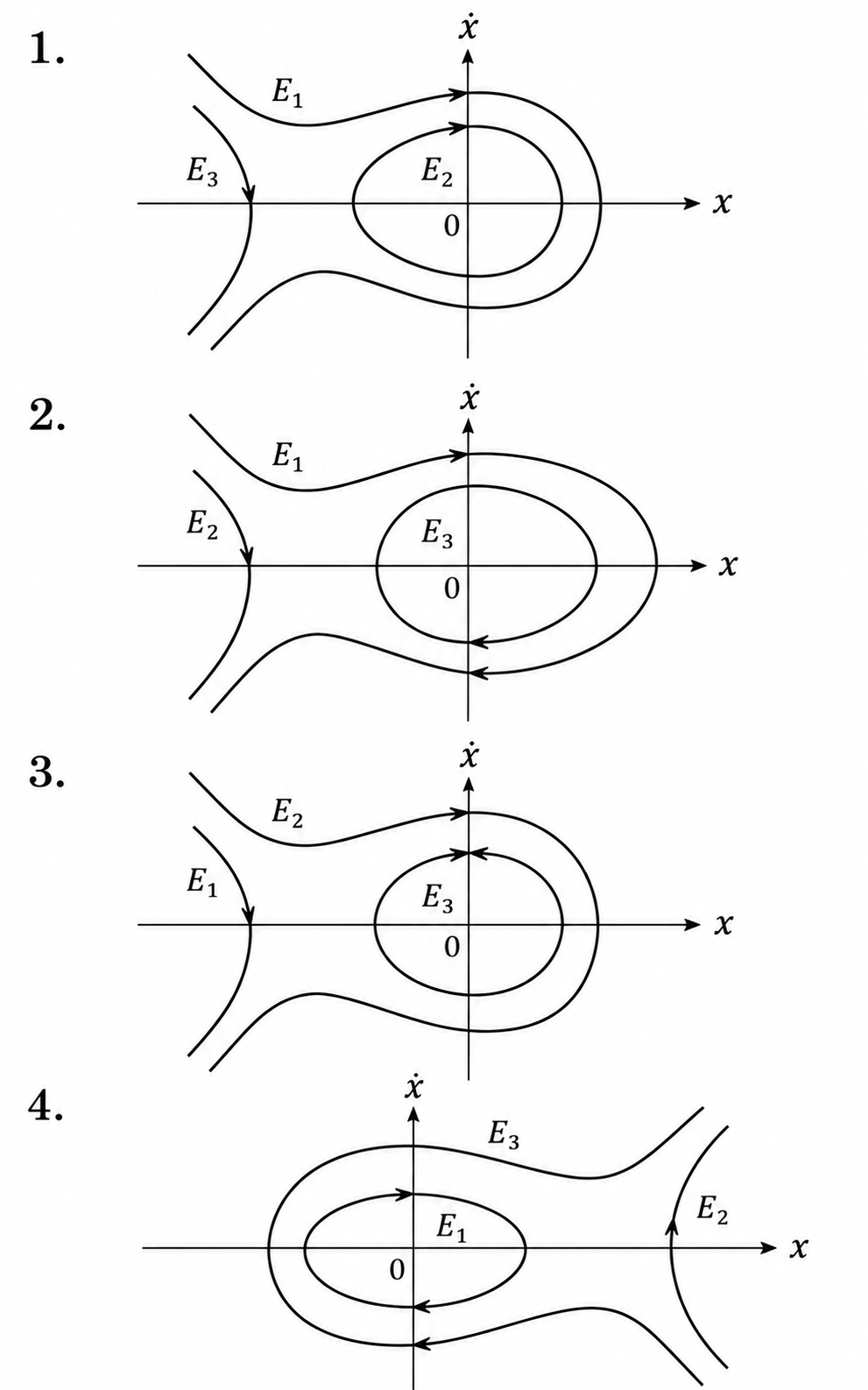

Q63

Classical Mechanics · Phase Space

A particle is moving in one dimension in the potential $$V(x)=\frac{1}{2} x^2+\frac{1}{3} x^3 .$$ The schematic phase-space diagrams for the total energies $E_1>E_2>E_3$ are best represented by:

1. (A)1
2. (B)2
3. (C)3
4. (D)4

▶Show answer & solution

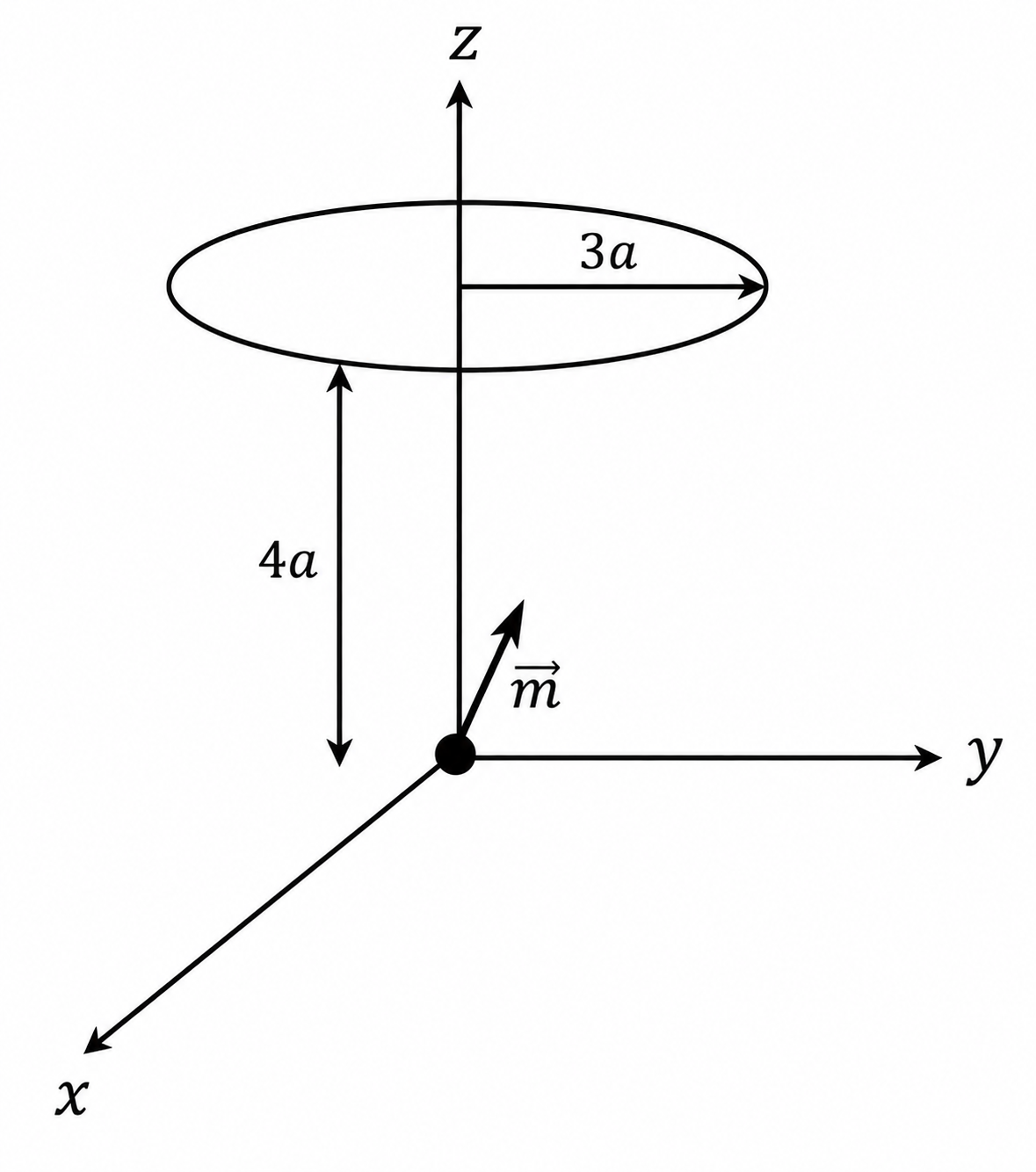

Q64

Electromagnetism · Electromagnetic Induction

A magnetic dipole $\vec{m}$ is kept at the origin with its direction along $+z$-axis. At time $t=0$ it starts spinning about $x$-axis with angular speed $\omega$. A wire loop of radius $3 a$ is kept with its plane parallel to $x y$-plane and centered at $z=4 a$ as shown in the figure. The emf $E$ induced in the loop for $t>0$ is: (Note that the magnetic flux through the given loop will be the same as through an appropriate section of a spherical shell of radius $5 a$ with its center at the origin.)

1. (A)$\left(\frac{9 \mu_0 m \omega}{500 a}\right) \sin \omega t$
2. (B)$\left(\frac{9 \mu_0 m \omega}{500 a}\right) \cos \omega t$
3. (C)$\left(\frac{9 \mu_0 m \omega}{250 a}\right) \sin \omega t$
4. (D)$\left(\frac{9 \mu_0 m \omega}{250 a}\right) \cos \omega t$

▶Show answer & solution

Q65

Mathematical Physics · Tensors

In four dimensions, a rank four tensor is given by $T_{a b c d}$. It is symmetric under interchange of the indices $a, b$ and interchange of the indices $c, d$. Moreover, the tensor is anti-symmetric under the interchange of pair of indices $a b$ and $c d$. The number of independent components of the tensor is:

1. (A)100
2. (B)45
3. (C)36
4. (D)21

▶Show answer & solution

Q66

Mathematical Physics · Numerical Methods

Newton-Raphson method is used for finding the roots of the polynomial $\left(x^2-1\right)(x-2)$. If the initial trial solutions are chosen as 0 and 0.5 , the algorithm converges to $p$ and $q$, respectively. Then, which of the following is correct?

1. (A)$p=1, q=-1$
2. (B)$p=-1, q=1$
3. (C)$p=2, q=1$
4. (D)$p=1, q=2$

▶Show answer & solution

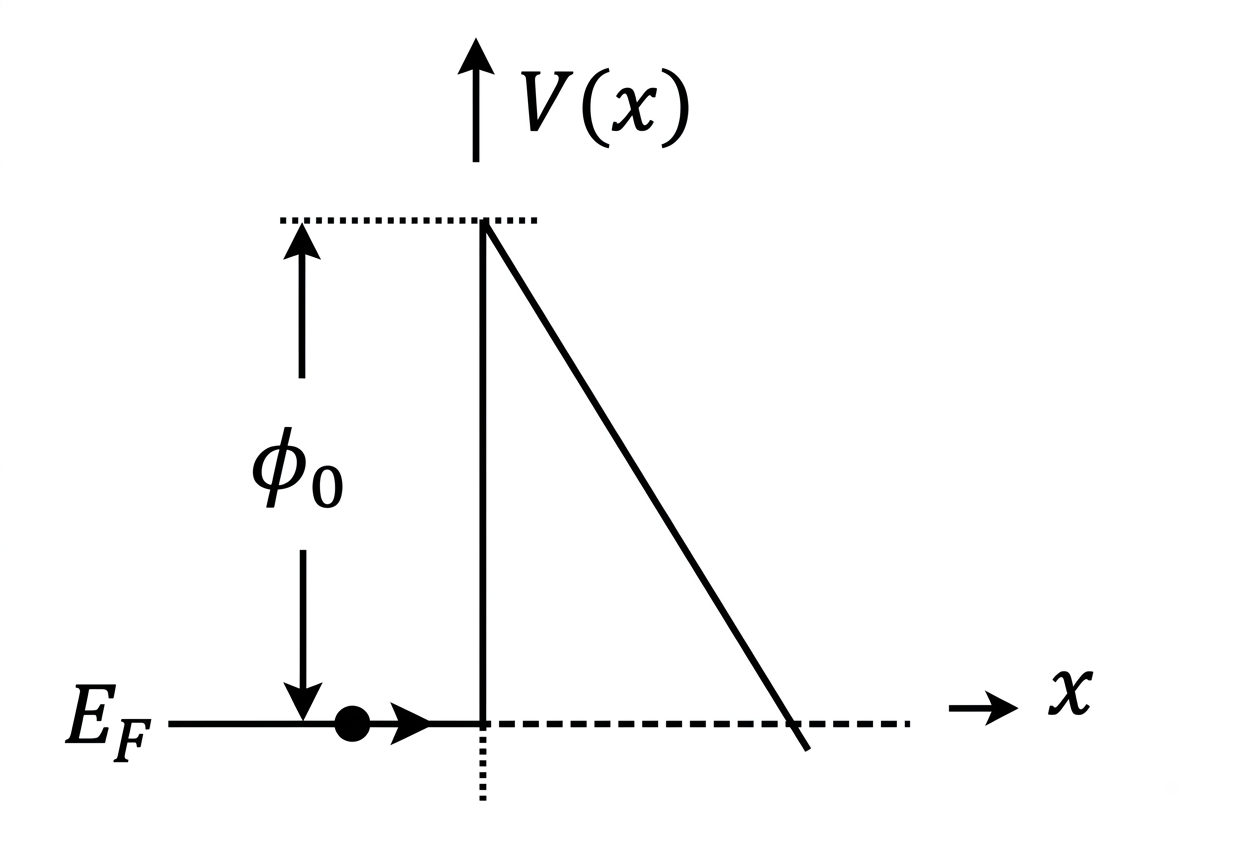

Q67

Quantum Mechanics · WKB approximation

The surface of a metal of work function $\phi_0$ is subjected to an electric field $\mathcal{E}$. As a result, the electric potential profile just outside the surface is given by $V(x)=\phi_0-x \mathcal{E}$ as shown in the figure. For electric field $\mathcal{E}$, the probability $p(\mathcal{E})$ of tunneling of an electron moving at the Fermi energy $\left(E_F\right)$ can be found using the WKB approximation. If $\lambda=\sqrt{\frac{2 m e \phi_0^3}{\hbar^2}}$, then the value of the ratio $\frac{p(\varepsilon=2 \lambda)}{p(\varepsilon=\lambda)}$ will be: (Here, $e$ and $m$ are electron's charge and mass, respectively)

1. (A)1.36
2. (B)2.73
3. (C)1.94
4. (D)5.13

▶Show answer & solution

Q68

Classical Mechanics · Small Oscillations

A dynamical system is described by a differential equation $\ddot{x}-\dot{x}+x^2-2 x=0$. The nature of the fixed point at the origin is:

1. (A)unstable spiral
2. (B)stable node
3. (C)unstable hyperbola
4. (D)stable spiral

▶Show answer & solution

Q69

Nuclear and Particle Physics · Particle Physics

Consider the following decay processes of $\rho^0$ : (A) $\rho^0 \rightarrow \pi^{+}+\pi^{-}$ (B) $\quad \rho^0 \rightarrow \pi^0+\pi^0$ For the conservation of angular momentum and parity, which of the following options is correct?

1. (A)Both processes (A) and (B) are allowed
2. (B)Both processes $(A)$ and $(B)$ are forbidden
3. (C)Only process (A) is allowed
4. (D)Only process (B) is allowed

▶Show answer & solution

Q70

Statistical Mechanics · Random Walk and Diffusion

A biased random walker confined to the $x$-axis moves, at each step, with probability 0.6 to the right and with probability 0.4 to the left. If the walker takes 1000 steps starting from the origin, the probability that the walker is found exactly 200 steps to the right of the origin is close to:

1. (A)0.026
2. (B)0.125
3. (C)0.250
4. (D)0.375

▶Show answer & solution

Q71

Condensed Matter Physics · Xray Diffraction

Potassium chloride $(\mathrm{KCl})$ crystallizes in NaCl structure. The atomic form factors of $\mathrm{K}^{+}$and $\mathrm{Cl}^{-}$are the same. Then the first four X-ray diffraction peaks for KCl are:

1. (A)(100), (110), (111), (200)
2. (B)(110),(200),(222),(310)
3. (C)(111), (200), (220), (311)
4. (D)(200),(220),(222),(400)

▶Show answer & solution

Q72

Nuclear and Particle Physics · Nuclear Models

The table shows the $g$-factors of proton ( $p$ ) and neutron ( $n$ ) for orbital ( $g_l$ ) and spin $\left(g_s\right)$ angular momentum. $$\begin{array}{lll}& g_l & g_s \\ p & 1 & 5.58 \\ n & 0 & -3.82\end{array}$$ The magnetic moment of ${ }_8^{17} \mathrm{O}$ nucleus, according to the single particle shell model, in units of nuclear magneton $\left(\mu_N\right)$ is:

1. (A)0.55
2. (B)4.79
3. (C)-1.91
4. (D)-3.82

▶Show answer & solution

Q73

Condensed Matter Physics · Free electron theory

Resistivity of a monovalent metal, having atomic density $4 \times 10^{22}$ atoms $/ \mathrm{cm}^3$, is found to be $1 \mu \Omega$-cm. The approximate value of the mean free path of electrons in this metal is: (Given: $\hbar=10^{-34} \mathrm{~J}$-s and $e=1.6 \times 10^{-19} \mathrm{C}$ )

1. (A)1 nm
2. (B)100 nm
3. (C)$10^4 \mathrm{~nm}$
4. (D)$10^6 \mathrm{~nm}$

▶Show answer & solution

Q74

Quantum Mechanics · Scattering theory

A particle of mass $m$ with momentum $\hbar \vec{k}$ scatters elastically to momentum $\hbar(\vec{k}+\vec{q})$ from a spherical potential $$V(\vec{r})=\left\{\begin{array}{clr} V_0 & \text { for } & r \leq R \\ 0 & \text { for } & r>R \end{array} .\right.$$ Here, $q^2=4 k^2 \sin ^2 \frac{\theta}{2}$ with $\theta$ being the scattering angle. Within the firstorder Born approximation and for $q R \ll 1$, the differential scattering crosssection to the leading order in $R$ is proportional to:

1. (A)$R^2$
2. (B)$R^4$
3. (C)$R^6$
4. (D)$R^8$

▶Show answer & solution

Q75

Experimental techniques · Curve fitting

Given is a set of 5 data points of the form $\left(x_i, y_i, \sigma_i\right)$ with $\sigma_i$ as the estimated uncertainty in $y_i$. This data is fitted to the form $y=a x+b$ and the minimized $\chi^2$ (chi-square) is found to be 5.1. The reduced $\chi^2$ for this fitting is:

1. (A)1.0
2. (B)1.2
3. (C)1.5
4. (D)1.7

▶Show answer & solution
